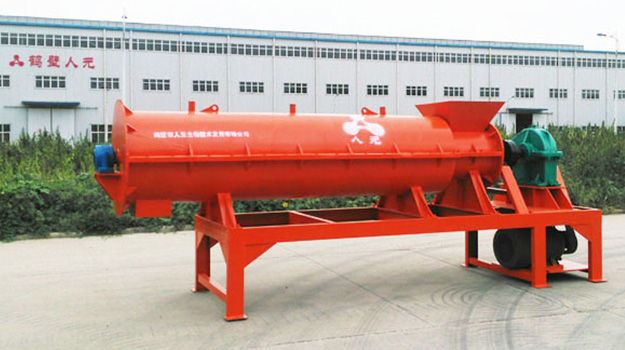

The new type organic fertilizer granulator is a new product developed and produced by Renyuan biotech . It is used to granulate various organic materials after fermentation, breaking through the conventional organic material granulation process. Some raw materials do not need to be transformed before granulation, and spherical granular can be processed directly after raw materials are crushed, which can save a lot of energy. The produced granular are spherical with high organic content, so pure organic materials can be granulated without adding adhesives.
This machine not only granulate a variety of organic substances, especially coarse fiber materials that are difficult to be granulated by conventional equipment, such as crop straw, wine residue, bacterial residue, drug residue, animal feces, etc., but also achieve a good granulation effect on humic acid, urban sludge and other raw materials. The granular are solid, and can be screened after granulation, reducing the drying energy consumption. The moisture content of raw materials can be about 20% - 40%.
Working principle of new organic fertilizer granulator
The materials enter the machine from the feeding port at one end of the machine body, and are continuously pushed by the granulation rotor and mechanically moved with the casing to achieve the purpose of granulation. The finished granular are pushed out of the machine at the other end of the machine body.
The rotor is driven by the motor and reducer of the transmission device, and the transmission part and the body part are mostly fixed on the same frame. This is not only solid in structure, stable in operation, but also convenient in installation. It is a new environmental protection organic fertilizer granulator equipment.
