RYFD3000-Large scale flipper
RYFD3000-Large scale flipper

crawler flipper for fertilizer composting

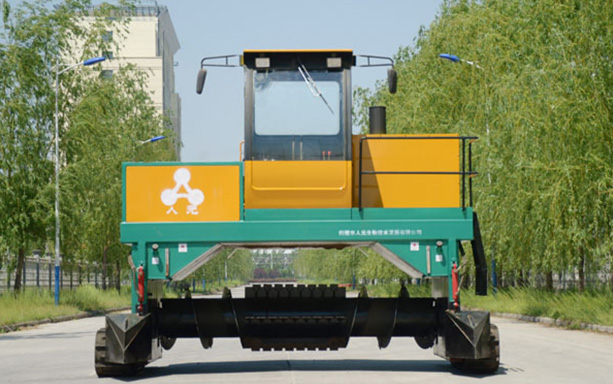

FD 3000 type flipper machine is a large full hydraulic crawler type flipper designed  combination with the national conditions of our country, which adopts the advantages of mature models of similar foreign products. It has the characteristics of compact design, simple operation and workplace saving.
Description
FD 3000 type flipper machine is a large full hydraulic crawler type flipper designed  combination with the national conditions of our country, which adopts the advantages of mature models of similar foreign products. It has the characteristics of compact design, simple operation and workplace saving. The machine adopts the overall lifting design of the frame, which can raise and lower the frame height when the work site is moved and the heap height needs to be changed, making the operation more convenient. Because the FD3000 type produced by our factory is a full hydraulic flipper, there is basically no mechanical wear, the failure rate is low, and there is basically no need to repair.
RYFD3000
Parameter
MODEL FD-3000 Rated power 93kw/2200r/min
Heap width 3000㎜ Maximum torque n m/1500r/min
Heap height 1.6 m Minimum fuel rate ≤208g/kw.h
Track width 2×0.3m Working knife diameter 830㎜
The distance between deposits 0.6m processing capacity 1000-1200m³/h
The maximum diameter of material particles 250㎜ Number of cylinders 4
Turning radius r2000㎜ Cylinder volume 3.9L
The distance between deposits 0-10m/min Battery 24v
the retreat speed 0-10m/min Tank volume 110L
Processing capacity calculation 7.58m(Speed)×60(time)×3.0m(Width)×1.6m(height)÷2=1091方/时
Engine brand 4BTA3.9-C125
