Organic fertilizer compost turner machine

Description

The organic fertilizer flipper machine, also known as the tipper, windrow turner, the manure tipper, are actually the same equipment. The organic fertilizer flipper is the main machine in the complete set of special equipment for the production of biological organic fertilizer. The machine adopts a four-wheel walking design, which can move forward, backward, and turn, and is operated by one person.

During driving, the whole vehicle rides on the long strip-shaped fertilizer windrow which is piled up in advance, and the rotating knife shaft hung under the frame is used to mix, fluff and move the fertilizer base raw materials. After the vehicle passes, it usurps into a new strip-shaped stack. The operation can be carried out either in the open field or in the workshop shed.

A major technological breakthrough of this machine is the integration of the crushing function in the late stage of material fermentation. With the gradual dehydration of materials, the knife shaft equipped with a crushing device can crush the plates formed by the fertilizer in the fermentation process, which not only saves a crusher, but also greatly improves the crushing efficiency, reduces the cost, and fundamentally solves the problem that the production capacity is restricted by the crusher.

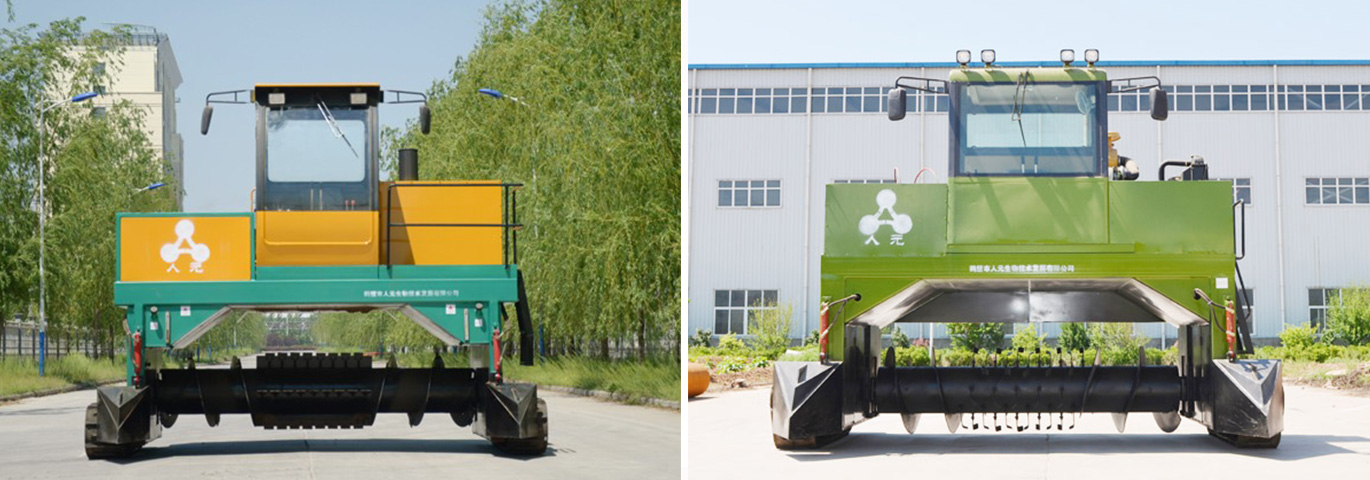

flipper machine

Features

The perfect fermentation process adopts microbial aerobic fermentation. The organic fertilizer compost turner machine produced by our factory is designed according to the principle of aerobic fermentation, so that the fermentation bacteria have space to play their functions. If bucket machinery and trough fermentation are used, anaerobic state will be formed in the fertilizer pile, therefore the function of fermentation bacteria can not be fully worked, which will affect the quality of fertilizer and its production cycle.

It is more suitable for the functional mechanism and process requirements of microbial fermentation on fresh chicken manure. Viscous chicken manure can be mixed with microbial agents and straw powder to create a good aerobic environment for material fermentation. Under the properties of this loose material, chicken manure can be deodorized in 7-12 hours, dried in three days, and fertilized in five to seven days, which is not only much faster than deep tank fermentation, but also prevents the production of harmful and malodorous gases such as hydrogen sulfide, amine gas, indole, etc. in the fermentation process, which not only meets the environmental protection requirements, but also can produce good bio organic fertilizer.

The whole machine has appropriate power balance, low energy consumption and large output, which reduces the production cost of bio organic fertilizer. According to the calculation of machine technical parameters, the small machine can turn and mix 400-500 cubic meters of fresh chicken manure per hour (equivalent to the tireless workload of 100 people at the same time). It can be converted into more than 160-200 tons of finished fertilizer. In an organic fertilizer plant with a daily output of 100 tons of finished fertilizer, workers can operate the machine for less than one hour (referring to the actual mixing time). The energy consumption per ton of fertilizer is less than 1kW, and the average oil consumption per cubic meter is 0.03 RMB. Only 4 or 5 employees are needed in the whole plant. Bring price advantages to finished fertilizer.

The overall structure of the machine is reasonable. The whole machine has good rigidity, balanced stress, simplicity, firmness, stable performance, easy to operate, and strong applicability on the working site. Except for the sturdy frame, all parts are standard parts, which are convenient to use and maintain.

In addition to the large, medium and small models, the organic fertilizer compost turner machine also divided into type A and type B. the working mode of type a is suitable for viscous materials, such as chicken manure, filter mud, furfural, etc; The working mode of type B is suitable for bulk materials, such as straw, grass, mushroom planting, etc.

The low investment, meets the needs of the public, and is conducive to the majority of farmers to invest and build factories and actively participate in the comprehensive treatment of chicken manure.

Auxiliary facilities can be added according to production needs, such as automatic liquid bacteria spraying device, air conditioner, etc.
