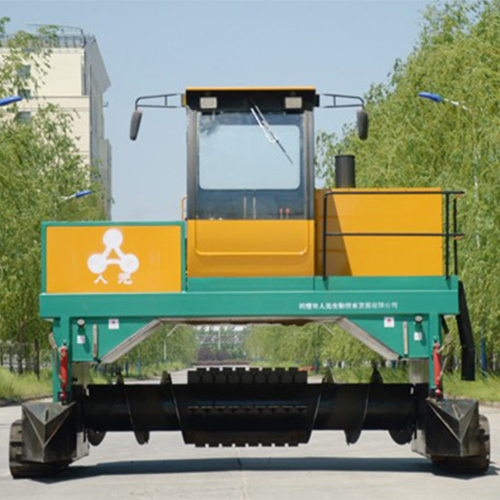

Crawler Type Compost Turner: Full Compost Without Blind Spot and Shortening 31% of the Fermentation Period. Renyuan fertilizer compost turner allows the organic waste to absorb a lot of fresh air, and the temperature can be adjusted to match specific needs, shortening 31% of fermentation time. Improving 27% of efficiency during composting and crushing with fertilizer compost equipment as our turner effectively integrates all kinds of raw materials together, with a powerful mixing and crushing function.

Application: Widely used in the industrialized fermentation treatment of organic solids such as animal manure, household waste, sludge, crop straws, etc.

Processing Capacity: 500-1200m³/h | Turning Width: 2.5-3m | Turning Height: 1.1-1.6m

Compost Turner Parameters

Types of Compost Making Machine

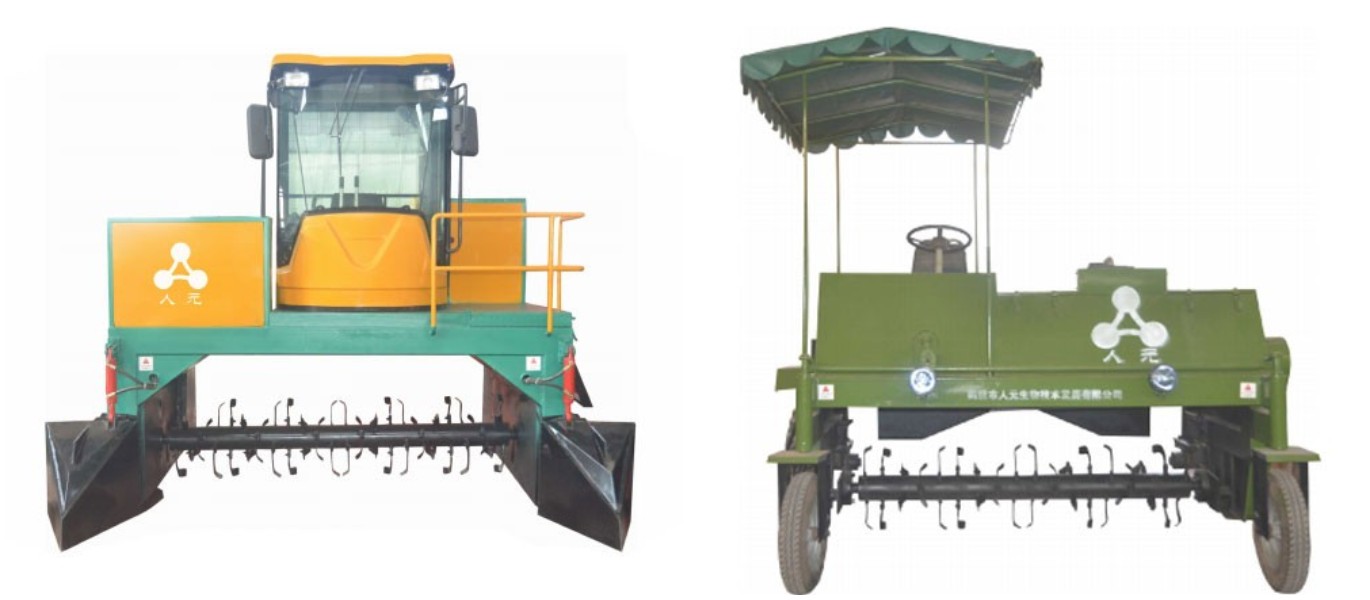

According to the working principle, it can be divided into wheeled compost turner (self-propelled compost turner), crawler type compost turner, crawler hydraulic type compost turner. The wheeled pile turner has a low processing capacity and is mainly used for processing organic fertilizers with less raw materials (small organic fertilizer plants); the crawler type pile turner has a wide range of applications and can be used in large, medium and small organic fertilizer plants of various scales; the crawler hydraulic type pile turner has a large processing capacity and is mainly used in large organic fertilizer plants.

Advantage of Crawler Compost Turner

1. Wide range of applications, this product is suitable for all kinds of livestock manure fermentation into organic fertilizer process.
2. With high fermented material accumulation, tossing output, material turning, turning width 2.5-3m, turning height 1.1-1.6m.
3. Balanced power, low energy consumption.
4. The equipment is suitable for strip composting, which can eliminate infrastructure projects and save investment costs.
5. The characteristic track design, both to change the traditional simply with light rail walking tosser low yield shortcomings, but also to overcome the conventional rack and pinion, light rail tosser drive auxiliary parts costly shortcomings.
6. With the advantages of simple operation, short fermentation cycle, full fermentation, low pollution, easy to expand.

Working Principle of Fertilizer Compost Machine

Crawler turner controls the speed and key quality of compost decomposition:
1. Control of carbon to nitrogen ratio (C/N)
Generally, the suitable C/N ratio for microbial decomposition of organic matter is about 25:1
2. Control of moisture
In actual production, the water content of compost is generally controlled at 50%~65%.
3. Compost aeration control
Ventilation and oxygen supply is an important factor for the success of composting, it is generally believed that the oxygen in the pile body is maintained at 8% ~ 18% more suitable
4. Temperature control
Temperature is an important factor affecting whether the compost microbial activity can be carried out smoothly, high temperature compost fermentation temperature of 50 ~ 65 degrees C is currently used fermentation method
5. acidity and salinity (PH) control
PH is an important factor affecting the growth of microorganisms, the PH of the compost mixture should be 6~9 as the best
6. Odor control
At present, more microbial deodorization is used to reduce the generation of gaseous volatile odor after the decomposition of ammonia substances

Renyuan Compost Turner Features

Strong Tossing Capacity
The rotating spiral drum will gather the triangular stack of materials to the middle, and at the same time, with the rotation of the drum, the materials will be tossed backward, so as to realize the full mixing of the top layer materials and internal materials.

Hydraulic Operation System
The rotating spiral drum will gather the triangular stack of materials to the middle, and at the same time, with the rotation of the drum, the materials will be thrown backwards, so that the top layer of materials and the internal materials can be fully mixed.

No Need to Build a Tank
It adopts diesel engine as the power, and the power reaches the drum carrying the combination tool through the transmission system, which can stir and crush the material, and decompose the organic matter under aerobic conditions, which not only improves the fermentation speed, but also effectively prevents the generation of harmful and malodorous gases such as hydrogen sulfide and amine gas in the fermentation process.
