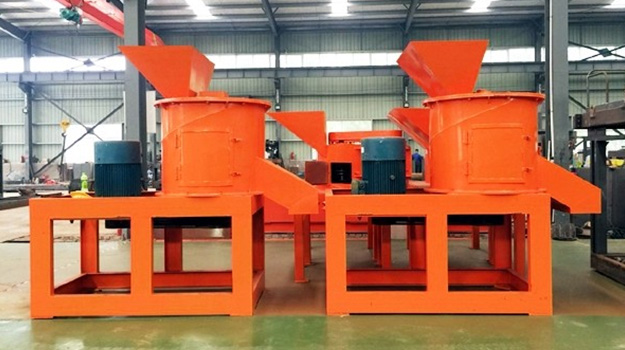

Product introduction of large vertical crusher

This machine is a new type of vertical grinder developed and produced by Renyuan bio tech company on the basis of the traditional vertical grinder, which greatly improves the production efficiency. It is a non screen and adjustable fine crushing equipment, which can be used for the crushing of the late deep processing of organic fertilizer. It is also one of the commonly used crushing equipment in the organic fertilizer and compound fertilizer industries.
Application scope: it is applicable to the grinding of raw materials and returned materials, especially for materials with high moisture content. It is not easy to block and the feeding is smooth.
When the material enters from the feed port and collides with the high-speed rotating casing in the casing. After the impact, the material is squeezed and broken, and then collides with the hammer after hitting the inner wall of the casing. In this way, after several impacts, it becomes powder and is discharged from the lower part.

Working principle of large vertical crusher
The structure is composed of lower frame, casing, upper and lower shaft base, main shaft, hammer head, hammer head support, belt pulley, motor frame, etc. The power drives the main shaft to rotate through the V-belt. The main shaft has two upper and lower bearing pedestals. The bearing pedestals are installed at the upper and lower ends of the casing. The casing assembly is installed on the lower frame. The main shaft is equipped with a hammer head, a hammer head bracket and a charging bucket are installed on the upper part of the casing. In order to facilitate the loading and unloading of the hammer head, a valve is opened on the casing to facilitate the disassembly and maintenance.

Advantages of large vertical crusher
The inner wall of the machine shell is lined with polypropylene plate, which alleviates the problem of sticking to the wall and being difficult to clean. The chain cutter head is made of special steel, which can effectively improve the production efficiency. This machine has the characteristics of reasonable structure, convenient operation and strong applicability.

Warm tips: problems needing attention in the use of large-scale vertical crusher. Since the bearing works in a harsh environment, the oil injection hole on the bearing seat is required to inject oil once every working day to extend the service life of the bearing.
